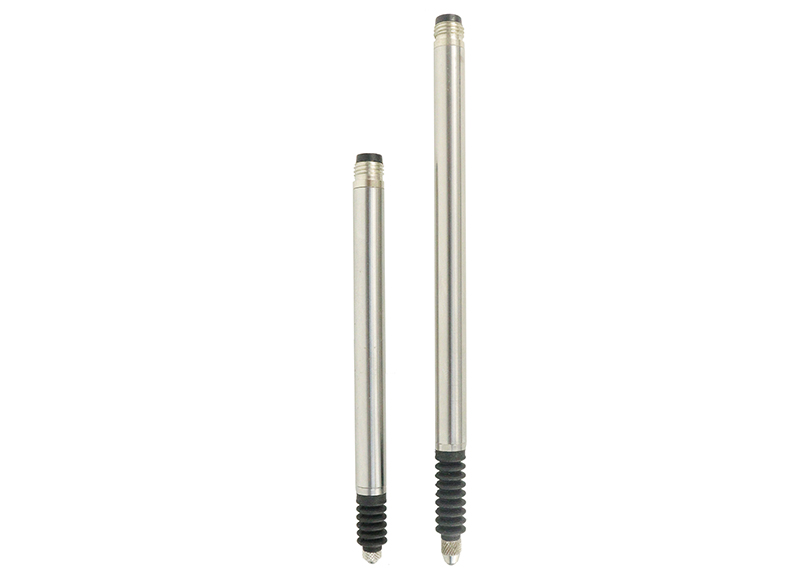

EDL Inductive Displacement Sensor



edl inductive displacement sensor

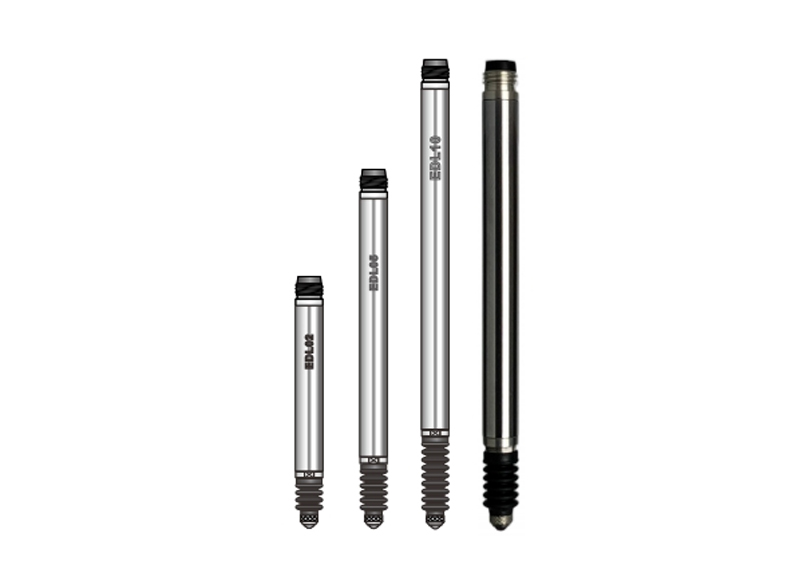

edl inductive displacement sensor design


EDL Inductive Displacement Sensor Features



EDL Inductive Displacement Sensor Specifications


Models

EDL05

EDL10

measuring range

5mm

10mm

linearity

0.3%

accuracy

0.1/1μm

1/3μm

2μm

5μm

resolution

0.1μm

1μm

0.2μm

1μm

repeatability

0.3μm

2μm

0.6μm

2μm

measuring force

0.7±0.2N

lTotal stroke

6mm

10mm

pretravel Stroke

0.3mm

back stroke

0.7mm

Connector interface

M8/6PIN

cable

∅5/2.0M;M8/6PIN-GX12/6PIN

level of protection

IP64

installation dimension

∅8g7


①③ matched  maximum error corrected with TRL18 transmitter

② matched TRL18 transmitter

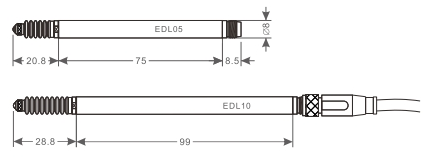

EDL Inductive Displacement Sensor Technical Drawing


EDL Inductive Displacement Sensor Technical Drawing
