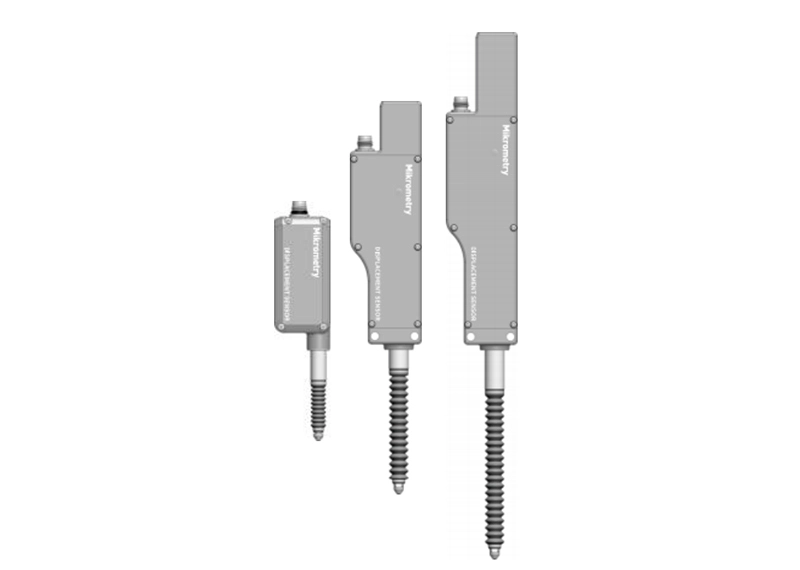

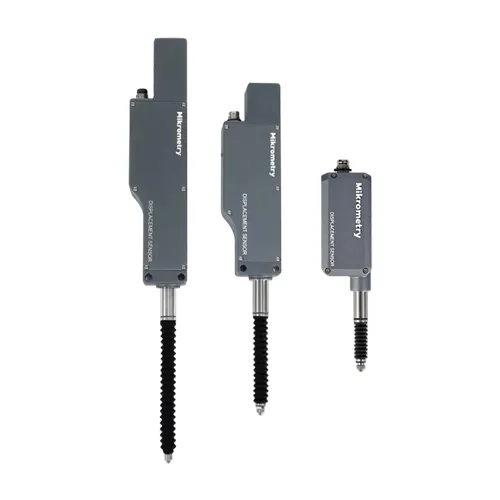

EGT2 Linear Gauge Sensor



egt2 linear gauge sensor


EGT2 Linear Gauge Sensor Features



EGT2 Linear Gauge Sensor Specifications


ModelEGT2-H1201EGT2-H1205EGT2-H3005EGT2-H5005
Measuring range12mm30mm50mm
Resolution0.1μm0.5μm0.5μm0.5μm
Accuracy (20℃)1μm2μm3μm3.5μm
PowerDC 5V, 300mA
OutputRS485(TTL、RS232 optional)
Environment resistance0~40℃, 20~80%RH
Protection gradeIP67
Dimensions28x16x119.8mm36x20x196.7mm36x20x264.1mm
Weight80g250g370g

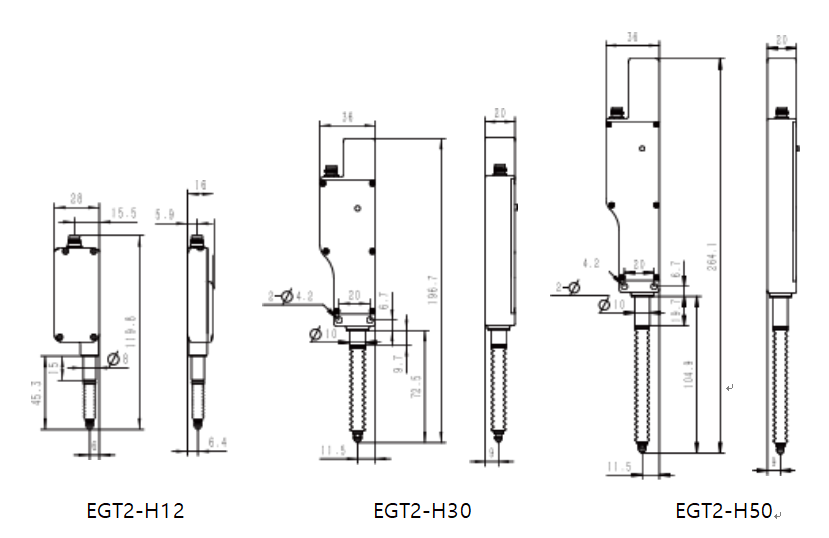

EGT2 Linear Gauge Sensor Technical Drawing
