Small size, high accuracy with no tracking errors.
A variety of connection methods, electric circuit connectable to PLC.
Stable repeatability.
| Model | EGT3-P1201 | EGT3-P1205 | EGT3-P3005 | EGT3-P5005 |
| Measuring range | 12mm | 30mm | 50mm | |
| Resolution | 0.1μm | 0.5μm | 0.5μm | 0.5μm |
| Accuracy (20℃) | 1μm | 2μm | 3μm | 3.5μm |
| Power | DC 5V, 300mA | |||
| Output | RS485(TTL、RS232 optional) | |||
| Environment resistance | 0~40℃, 20~80%RH | |||
| Protection grade | IP67 | |||

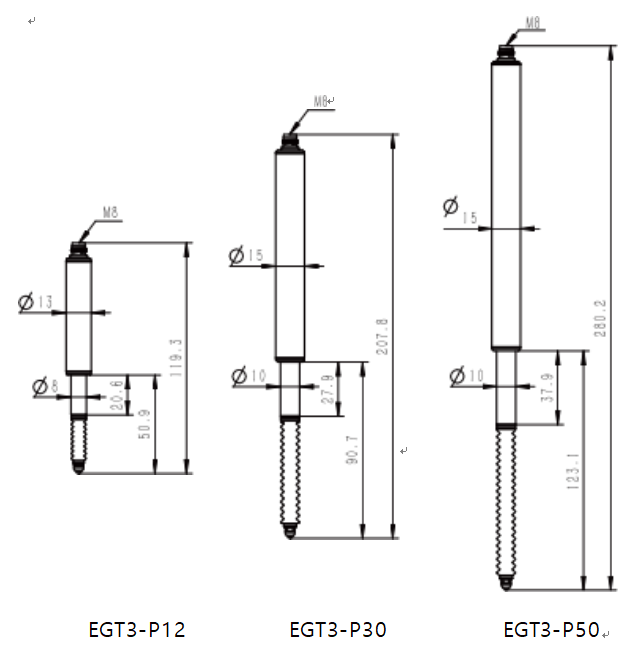

| Dimensions | 13x119.3mm | 15x207.8mm | 15x280.2mm | |
| Weight | 60g | 130g | 170g | |
