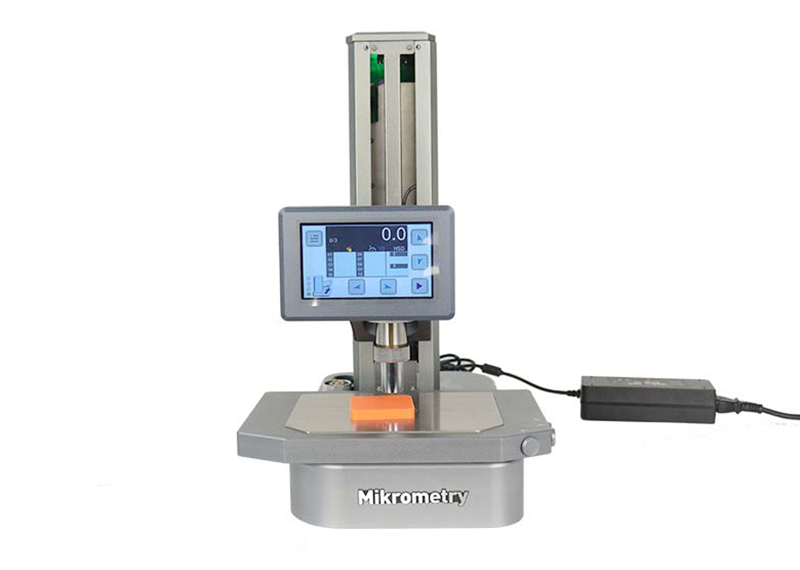

One-Key Automatic Shore Measurement
Accurate testing of durometer gauge for Rubber, Sponge, and Plastic hardness
A, D, and C probes available. Automatic Probe identification
Touch screen, easy operation
No worry continuous testing
Integrated metal construction ensures the best testing stability

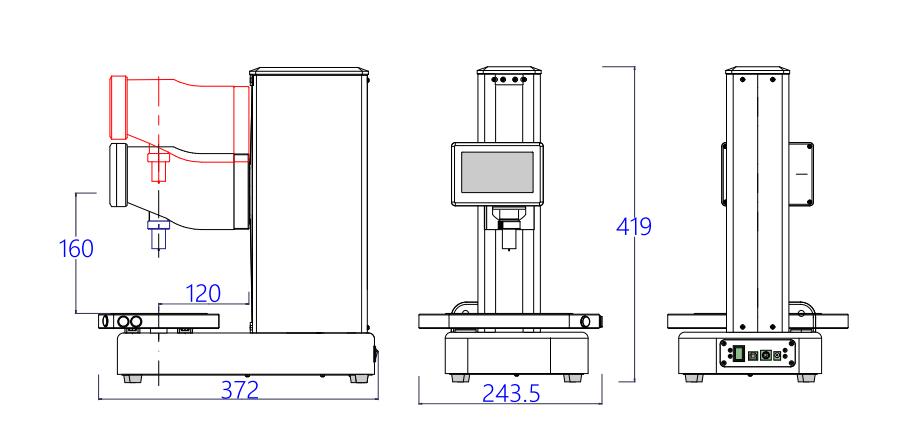

| Model | EHSC |
| Loading Mode | Stepping motor |
| Stroke | 160mm |
| Sliding Platform Stroke | 80mm |
| Force Loading Method | Spring Force |
| Throat Depth | 120mm |
| Probe | HA、HD、HC |
| Resolution | 0.1H |
| Reading Accuracy | ±1H |
| Output | Data interface, USB |
| Display | 800*480 serial display |
| Operating Environment | -10~40℃,20~80%RH |
| Power | DC24V5A |
