The series ETTB digital breakaway torque gauge meter tester is a simple operation test instrument, the breakaway torque tool tester provides testing manual, electric, and pneumatic torque screwdriver tester, wrenches, breakaway torque test, and other tools.
Curve or digital display modes
Reverse display setting
Calibration certificate Included
Charger with US/EUR/UK Plugs selectable
USB or RS232 communication interface, easy to communicate with PLC
Accuracy: ± 0.3% Readings
Sampling Rate: up to 2KHz
Range | 5%~100% Capacity |
Accuracy | ± 0.3% Readings |
Selectable Units | N.m、N.cm、kgf.cm、lbf.ft、lbf.in |
Display | 240*160 dot matrix LCD(3.1 inch) with LED Backlight |
Overload Capacity | 120% of F.S. |
Measurement Mode | Track, Peak, First Peak、Auto Peak、Auto First Peak、Double Peak |
Display Mode | Digital / Curve |
Data Sampling Rate | Up to 2KHz |
Memory | 1000 data |
SetPoint | Programmable high and low limits |
Battery Indicator | The display flashes the battery icon when the battery is low |
Power | 3.6VDC 1600mAH Ni-Mh rechargeable batteries |
Battery Life | Approx. 25 hours per charge |
Charger / Adaptor | Universal USB/BM charger, Input:110~240VAC |
Temperature Effects | <0.03% FS per °C |
Communication | USB or RS-232 |
Software | Free software for USB communication |
Outputs | RS-232, "Within" set point output, "Under or over" set point output |
Operating environment | Temperature: -10 to 40°C |
Relative Humidity: 20 to 80% | |
Storage environment | Temperature: -20 to +50°C |
Relative Humidity: 5 to 90% | |
Dimension | 197X183X83 mm |
Weight | ~ 1.6 kg |

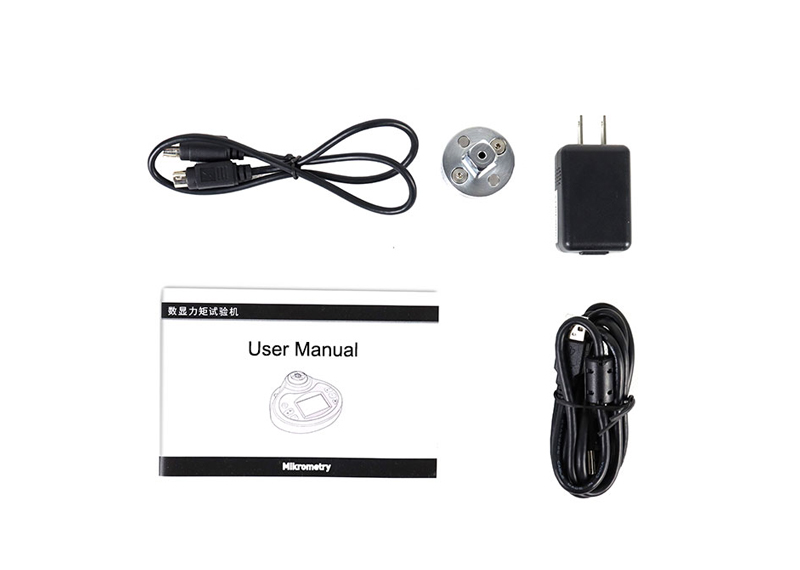

Accessories | AC adapter/charger, USB cable, Square drive adapter |
Options | Mini-printer, RS-232 Cable, Rundown Adapter, ETS-TT1 Torque Test Stand, ETS-TT2 Torque Test Stand. |
Model | Capacity/Resolution | |||||
N.m | N.cm | kgf.cm | lbf.ft | lbf.in | Interface | |
ETTB2 | 0.1~2/0.0002 | 10~200/0.02 | 1~20/0.002 | 0.07~1.48/0.0002 | 0.89~17.7/0.002 | ☐ 12.5(1/2"), ☐ 6.3(1/4") |
ETTB5 | 0.25~5/0.005 | 25~500/0.05 | 2.5~50/0.005 | 0.18~3.7/0.0005 | 2.2~44.3/0.005 | |
ETTB10 | 0.5~10/0.001 | 50~1000/0.1 | 5~100/0.01 | 0.37~7.4/0.001 | 4.4~88.5/0.01 | |
ETTB20 | 1~20/0.002 | 100~2000/0.2 | 10~200/0.02 | 0.7~14.8/0.002 | 8.9~177/0.02 | ☐ 12.5(1/2"), ☐ 10(3/8") |
ETTB50 | 2.5~50/0.005 | 250~5000/0.5 | 25~500/0.05 | 1.8~36.8/0.005 | 22~443/0.05 | |
ETTB100 | 5~100/0.01 | 500~10000/1 | 50~1000/0.1 | 3.7~74/0.01 | 44~885/0.1 |
