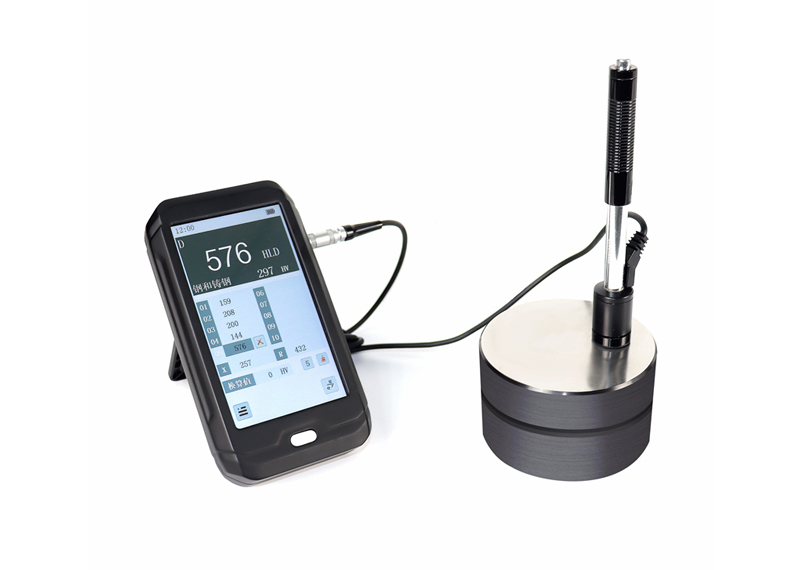

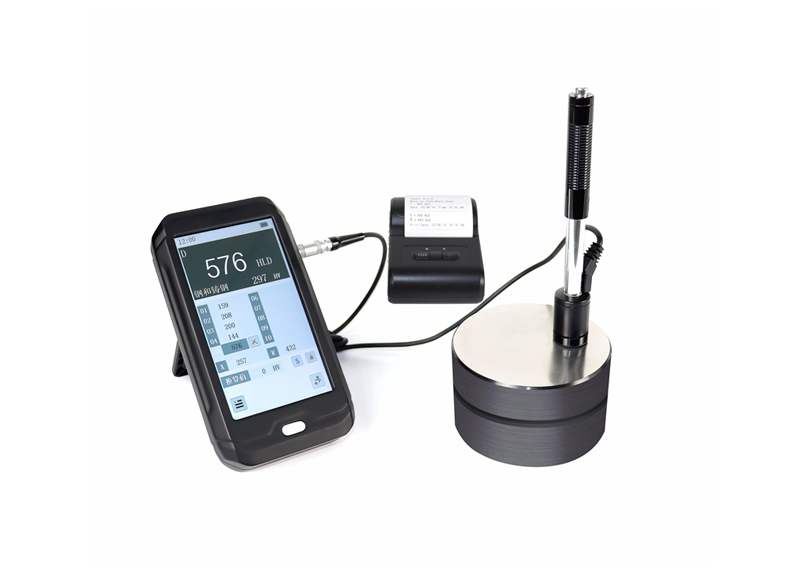

EHP210 is a light and portable tester. With 5 inch touch screen design. It is most suitable for testing of heavy, big or outdoor metal parts. It can measure in any direction and also easy to be used and accurate on curved test surfaces. Especially, the digital leeb hardness tester can automatically compensate effect of weight which is according to the test direction.

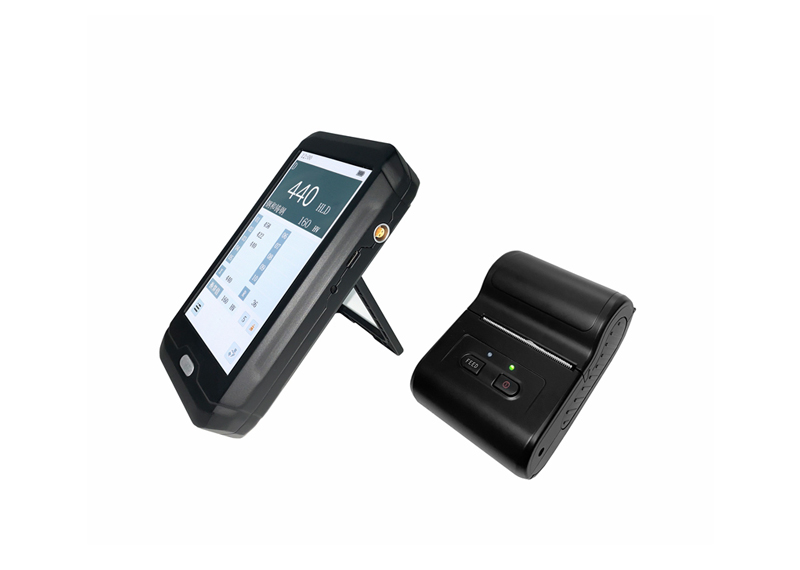

EHP210 uses wireless IR to communicate with printer, operates with touch screen and test data could be linked into PC.
Our digital hardness meter can read HRC,HRB,HRA,HB,HV,HSD,Mpa
Compact plastic case, suitable for use under poor working conditions.
Test at any angle, even upside down
Compact plastic case, suitable for use under poor working conditions.

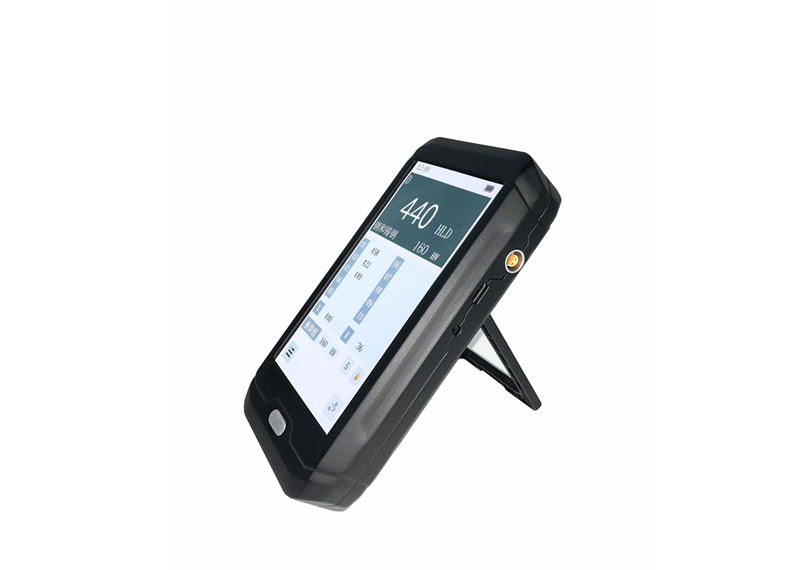

Large screen (5 inches), showing all functions and parameters. With background light
Large capacity memory could store 2000 groups of information.
Conforms to the Standard GB/T17394, GB/T1172, ASTM A956 & DIN 50156
HL display range | 170~960HLD | |||
Repeatability | 6HLD | |||
Testing direction | All direction | |||
Optional Impact Device | D, DC, DL, D+15, C, G | |||
Display | 5” 854*400(with touch screen), Bright and clear LCD display with backlight | |||
Operating voltage | 3.6V (rechargeable 800 mAh Ni-MH battery) | |||
Charging power supply | DC5V/1A | |||
Operating environment | Temperature :-10°C~+40°C | |||
Humidity:20%~85% | ||||
Storage environment | Temperature :-30°C~+80°C | |||
Humidity:5%~95% | ||||
Dimensions | 151mm*85mm*27mm | |||
Weight | 255g (include D type impact device) | |||
Accessories | Display Unit, Impact Device D, Test Block, Charger, Little Support Ring, Cleaning Brush USB Cable, PC Software CD. | |||
Communication | USB to PC for transfer data | |||
Optional | Mini thermal printer with RF wireless (Cable no needed) |
