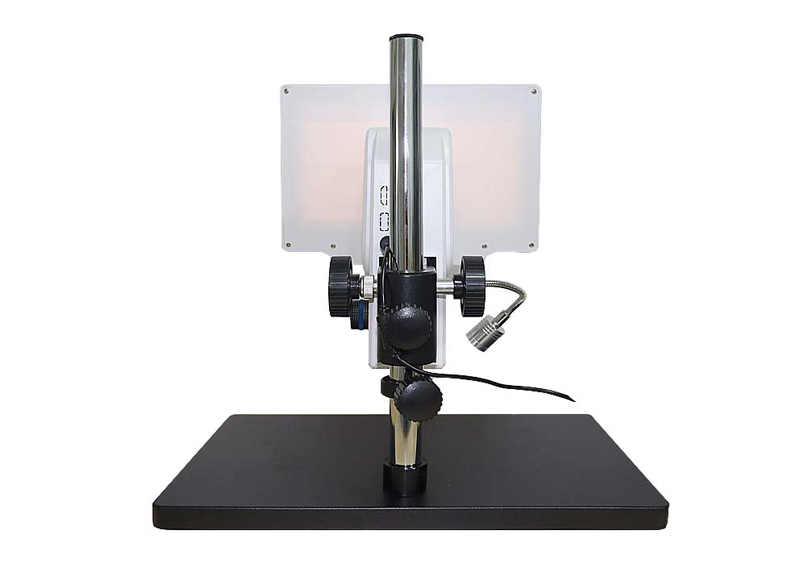

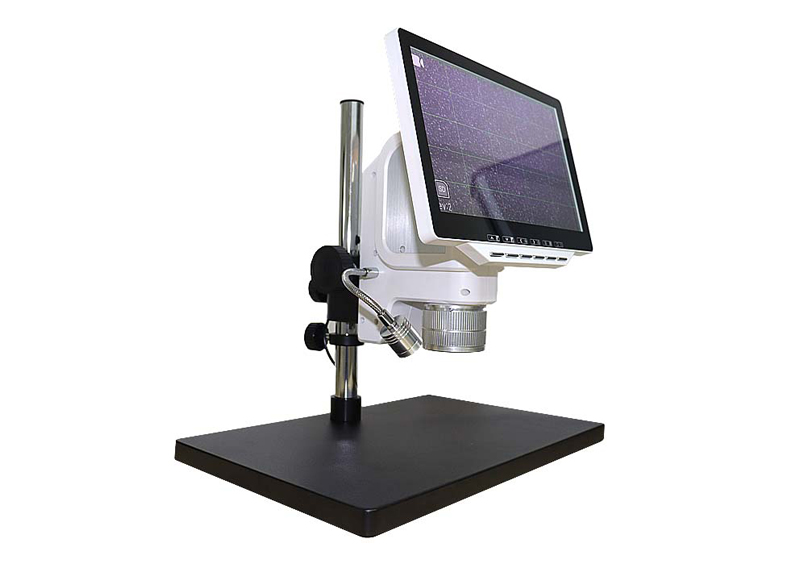

EMS106L is video microscope, it is widely used in PCB boards, hardware, serial devices, FPC, textile, tickets, kinds of visual industrial testing, digital magnifying glass and other fields. This video innovative digital microscope will reduce labor intensity and improve work efficiency.
10.6 inches HD LCD display, which is convenient to observe more detailed details.
Adjustable high brightness LED lights, which have a long service life.
Support inserting memory card to take photos and video for network sharing and computer saving.
The stand is very stable, and you do not have to worry about the shaking outside.
Wide usage: board repair, print inspection, money check, learning and exploring, insect observation, jewelry identification.
LCD Screen | Size | 10.6 inches IPS |
Resolution | 1366*768 | |
Digital Parameters | Camera Pixel | 1200 W |
Video Resolution | 1080p/60fps | |
Function | Automatic exposure, exposure offset, automatic white balance, multiple measurement methods, video recording, local storage | |
Storage | SD Card | |
Measurement & Position | Yes | |
External Interface | Projector/Monitor | |
Optical Parameter | Objective Lens | Zoom lens |
Rate | 0.7X~4.5X | |
Platform Parameters | Illumination | LED Lamp, Brightness Adjustable |
Focus Range | 42mm | |
Operating Distance | 105mm | |
Column | Round column | |
Bracket Size | 380mm*260mm*20mm | |
Power Supply | In:110~220VAC; Output: 12VDC/2A adapter | |
Working Environment | Temperature | 0~45℃ |
Humidity | 30~75﹪ |
