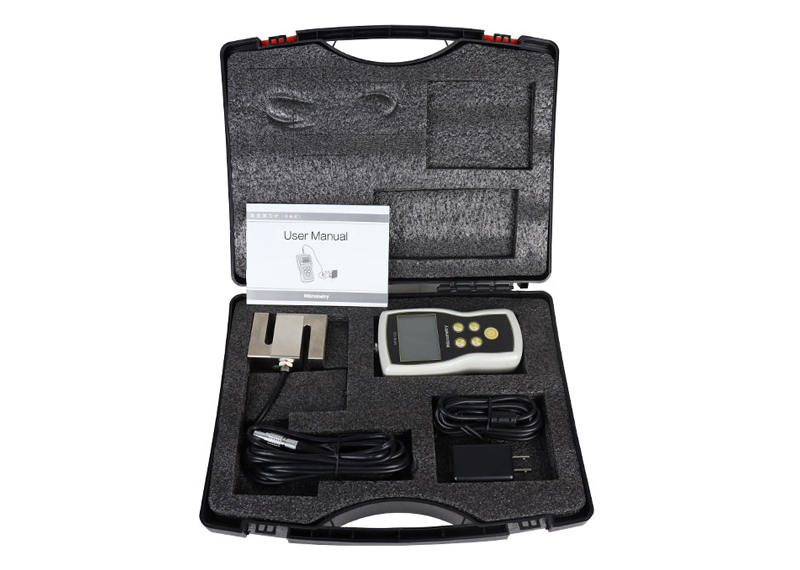

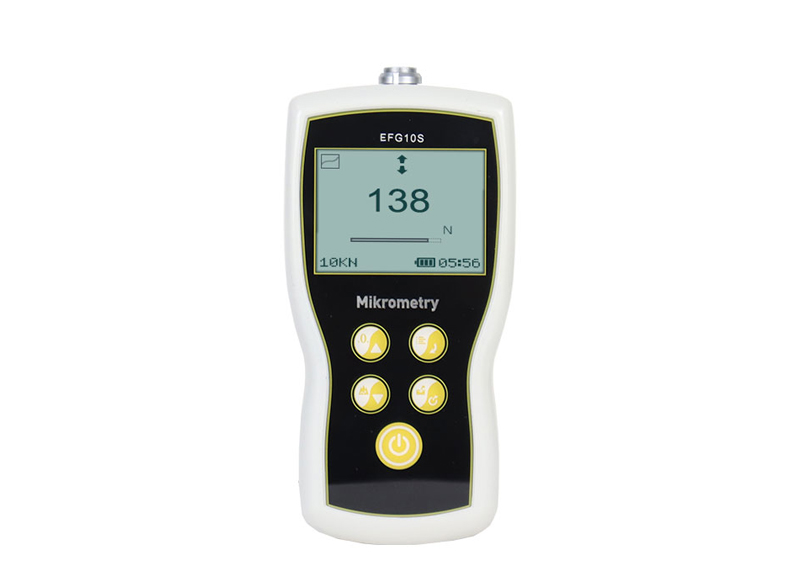

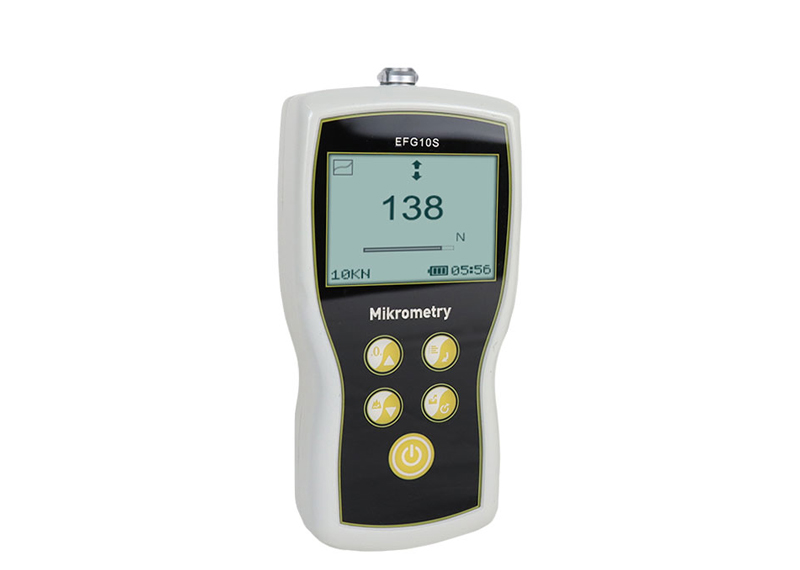

The EFG10S professional digital force meter indicator is designed to work with a wide range of Mikrometry remote force and torque sensors. All force gauge sensors are fully compatible with the EFG10S force indicators. The accuracy of this push meter is ± 0.2% FS. On-board data memory for up tp 1000 readings is included, data can be transferred to a PC or data collectors via USB or RS-232.
Durable metal case
Automatic load cell identification, unlike push pull testers.
Touch key
Curve or digital display modes
Calibration certificate Included
Charger with US/EUR/UK Plugs selectable
USB or RS232 communication interface ,easy to communicate with PLC
Accuracy: ± 0.2% FS
Sampling Rate: 2KHz
Accuracy | ± 0.2% F.S. |
Selectable Units | N、mN、gf、 kgf、 ozf and lbf |
Display | 160*128 dot matrix LCD(2.8 inch) with LED Backlight |
Overload Capacity | 150% of F.S. (LCD blinks beyond 110%) |
Measurement Mode | Track 、Peak、 Auto-Peak、First Peak |
Data Sampling Rate | Up to 2KHz |
Display Update Rate | 10 times/second |
Memory | 1000 data |
Set Point | Programmable high and low limits |
Battery Indicator | The icon flashes when the battery power is low |
Power | 3.6VDC 800mAH Ni-Mh rechargeable batteries |
Battery Life | Approx. 14 hours per charge |
Charger / Adaptor | Universal USB/BM charger, Input:110~240VAC |
Temperature Effects | <0.03% FS per °C |
Communication | USB or RS-232 |
Software | Free software for USB communication |
Outputs | RS-232, "Within" set point output, "Under or over" set point output |
Operating environment | Temperature: -10 to 40°C |
Relative Humidity: 20 to 80% | |
Storage environment | Temperature: -20 to +50°C |
Relative Humidity: 5 to 90% | |
Dimension | 195*170*87.5mm |
Weight | 630 g |
Accessories | DC 5V 1A power adapter |
