Incremental/absolute position measurement available.
Open and non-contact design.
Easy and quick installation.
2-color status indication.
| Linear Scale | |

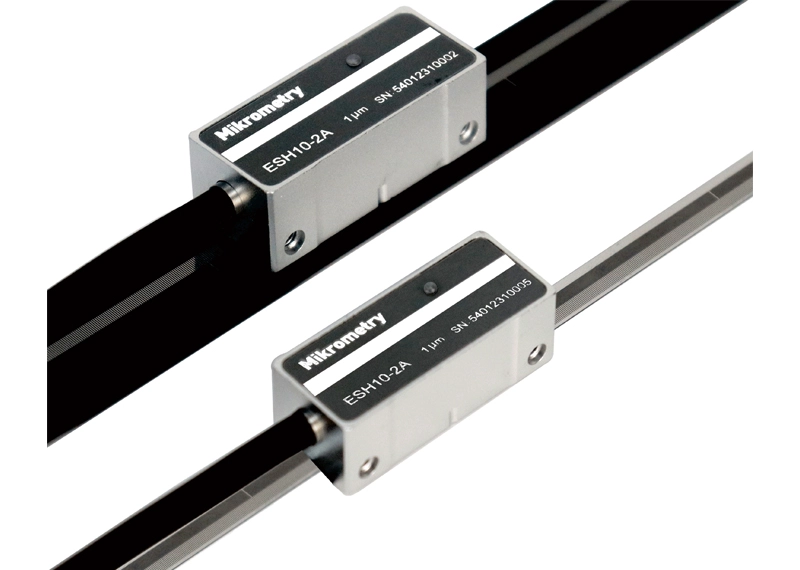

| Material of tape | glass or stainless steel |
| Accuracy grade | ±3μm |
| Measuring range | 100、200、300、400、500、1000mm |

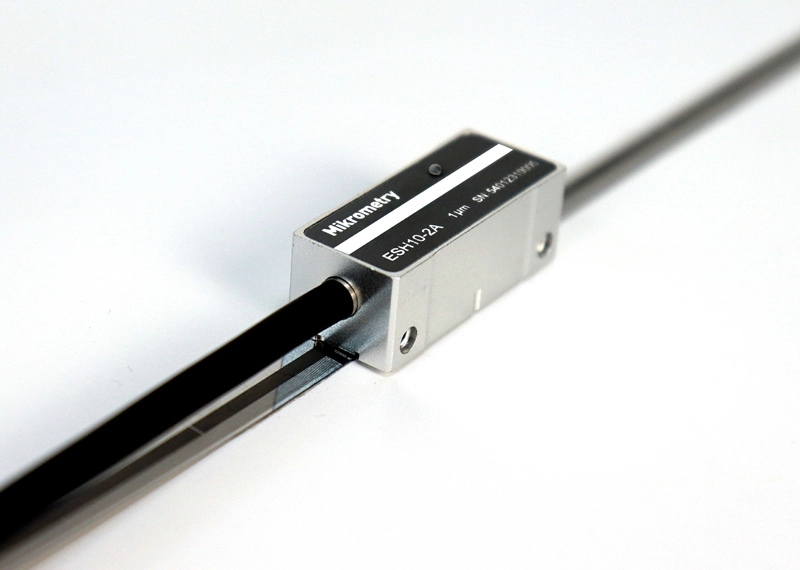

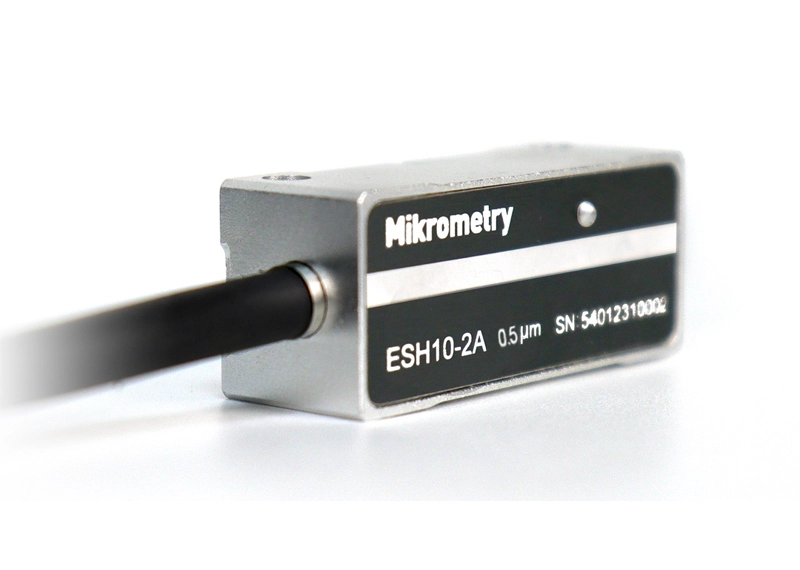

| Readhead | ESH05 | ESH10 |
| Resolution | 0.5μm | 0.1μm |
| Power | DC5V+/-10%, 300mA | |
| Speed (max.) | 2.5m/s | |
| Output | 5V TTL | |

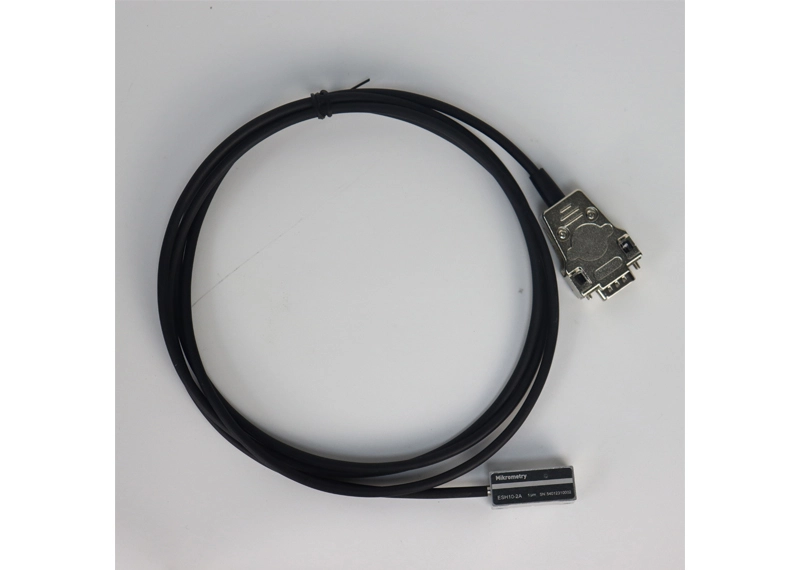

| Readhead Cable | Φ4.5mm* 2m, fl ex life>10 million cycles at 25mm bend radius | |
| Connector options | D-sub 9 pin/ D-sub 15 pin | |
| Environmental resistance | -10~65℃ , 20~80%RH | |
