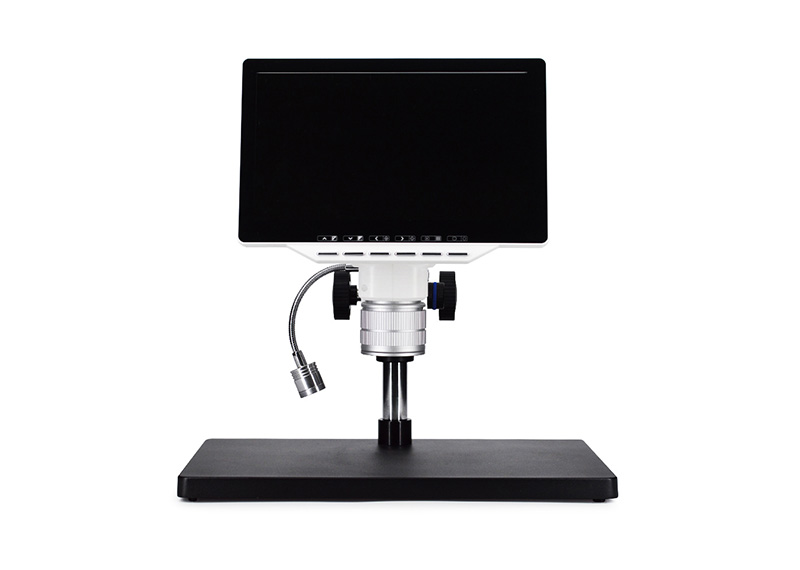

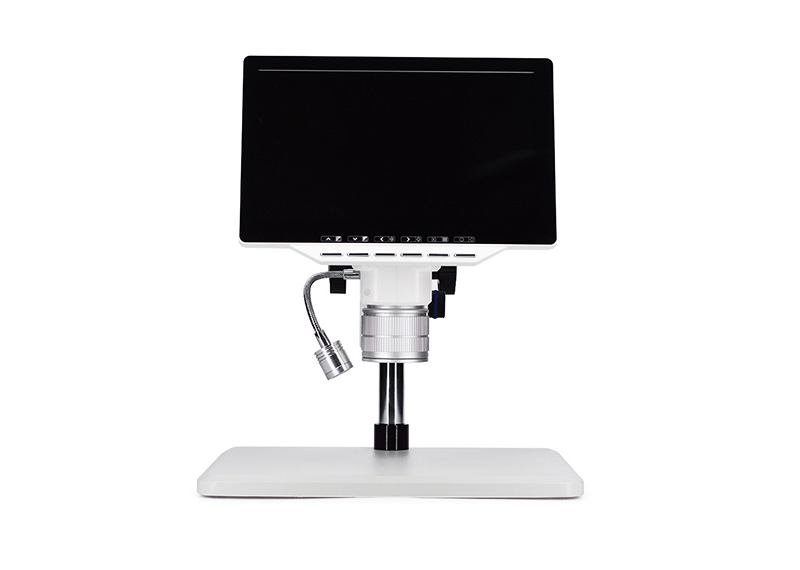

EMS106LX Video Microscope is widely used in PCB boards, hardware, serial devices, FPC, textiles, tickets, kinds of visual industrial testing, digital magnifying glass, hospital research, education, criminal investigation and other fields. The innovative digital microscope will reduce labor intensity and improve work efficiency.
Full HD Display: 10.6" HD LCD screen;
Full HD Camera: The highest 12M images ,1080P/60fps HD video with memory card(Max:32G) to store inspection results anytime ,no need to connect to PC.;
HDMI HD Output, freely connect to big monitor to anaysis
Continuing Zoom Range:0.7X~4.5X, Total magnifications:14X~100X.
Wireless Connection:Download pictures or videos from the APP to share or process later data;
WDR: Improve video clarity in dark;
Worktable Size: 380*250*20mm ,suitable for all kinds of inspection and operation tasks;
Multiple Measuring Functions: Crosshair, reticle, degree scale, etc.(Customizable)
Parameters | ||
Model | ||
LCD Screen | Size | 10.6 Inches IPS |
Resolution | 1366*768 | |
Digital Parameters | Camera Pixel | 1200w |
Video Resolution | 1080p/60fps | |
Data Output | HDMI | |
Wireless Connection | Yes(optional) | |
WDR | Yes | |
Function | Automatic exposure, exposure offset, automatic white balance, video recording, local storage (maximum memory 32G) | |
Storage | SD Card | |
External Interface | Projector/Monitor | |
Optical Parameter | Objective Lense | Zoom lens |
Rate | 0.7X~4.5X | |
Platform Parameters | Illumination | LED Lamp, Brightness Adjustable,Side LED lights |
Focus Range | 60mm | |
Operating Distance | 88mm | |
Column | Round column | |
Bracket Size | 380mm*250mm*20mm | |
Accessory | SD Card | |
Supply Voltage | DC12V | |
